Light is right

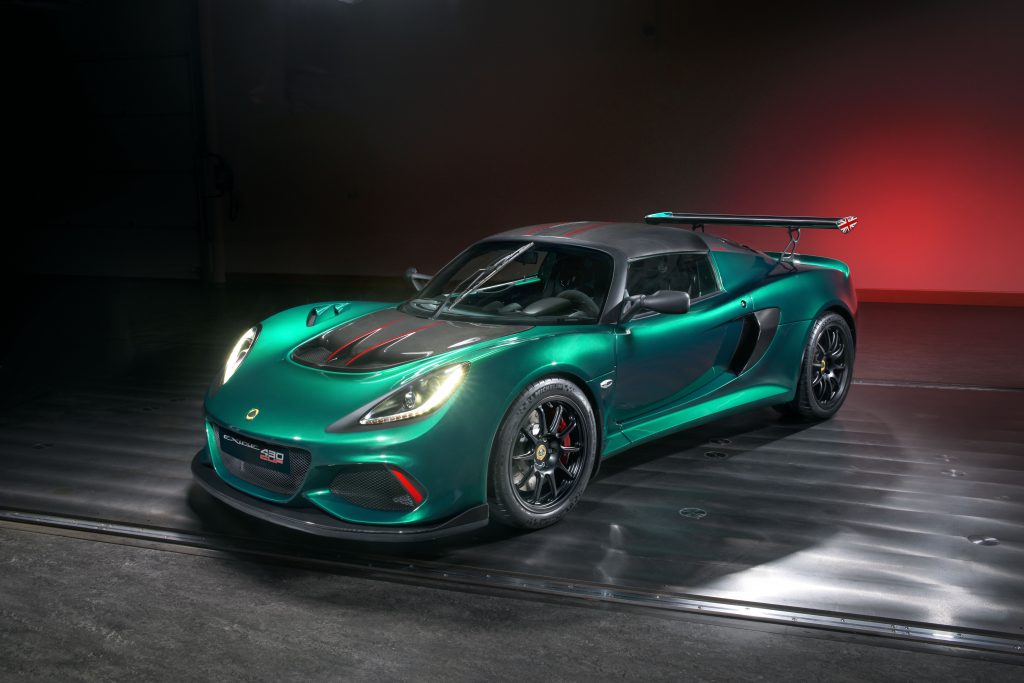

The new Lotus Exige Cup 430: Unlimited Edition



  • Full-production model is most extreme Exige ever conceived
  • New engine installation, delivering 430 hp and 440 Nm
  • New design generating 220 kg of downforce
  • 407 hp per tonne provides unrivalled performance
  • 0-60 mph in 3.2 secs, dry weight from 1,056 kg
Unlimited in every sense, the new series production Exige Cup 430 is Lotus’ wildest incarnation of its fire-breathing, point-to-point two-seater sports car.New to the Exige, the Cup 430 sees the introduction of a savage, high-performance engine installation, mated to a new supercharger and chargecooler, designed specifically for the unique demands of this vehicle.  A development of the powertrain recently used on the phenomenal Lotus Evora GT430, it’s perfectly paired with a newly-designed body, which delivers enhanced aerodynamic performance to reveal the model’s true potential. The result is a strikingly different beast of pure performance, that’s not for the faint of heart.With 55 hp, or 13%, more power than the limited production Exige Cup 380 model it succeeds, and 220 kg of downforce, it’s a monster of a car. Compared to the Exige Sport 350, it has 24% more power and generates the same downforce at 100 mph as the Exige Sport 350 does at its maximum speed of 170 mph.
Lotus’ expertise in lightweight design has played its part in reducing the overall dry weight by 12 kg to 1,059 kg, with the vehicle down to 1,056 kg in its lightest configuration. This, combined with the dramatic jump in raw power, raises the Cup’s power to weight from 355 hp / tonne (Cup 380) to 407 hp / tonne. With 430 hp at 7,000 rpm and 440 Nm (325 lbft) of torque from 4,000 rpm, 0-60mph is dispatched in 3.2 seconds (0-100 km/h in 3.3 seconds) with a top speed of 180 mph (290 km/h). Helping to harness all that power, the Cup 430 benefits from a comprehensive range of new aero elements. A new ultra-lightweight front clam with unique carbon fibre ducts has wider radiator apertures and a new mesh pattern grille to provide a more combative aspect and to allow for a new front splitter and air curtain mechanism to reduce drag. The lightweight rear clam panel supports the larger, straight motorsport wing to increase downforce without impacting upon the car’s overall drag coefficient. The new design front and rear clam panels are 6.8 kg lighter than those on any other Exige.
Focused fairly and squarely on aggressive track performance and point-to-point supremacy, the new Lotus Exige Cup 430 is capable of covering the Hethel circuit in 1 minute 24.8 seconds – the fastest production car to lap the famous circuit – 1.2 seconds faster than the Lotus 3-Eleven (Road).Jean-Marc Gales, CEO, Group Lotus plc said, “This is the car that we have always wanted to build, and I am sure that all Lotus enthusiasts will be delighted with the end product. As well as a significant power hike, the Cup 430 has benefited from extensive development in areas essential to Lotus’ DNA, in order to ensure that the full potential of the Exige’s incredible chassis can be exploited. This car has no rivals – inside or outside of its price bracket – and it’s no exaggeration when we say that nothing can keep up with this Exige on the road or track.”
Lotus Exige Cup 430 – carbon based light formLotus’ most extreme Exige packs the company’s most potent powertrain into its smaller vehicle architecture to provide a level of performance that is a step beyond what most drivers can exploit. The car’s distinctive and aggressive new styling perfectly matches the character of the new Exige Cup 430.Signaling the most motorsport focused models in Lotus’ range, the Cup variants are centered on only the essential. Extending this philosophy to its limit, the new Cup 430 is at the apex of the Exige line-up – with only a track-only racer capable of exceeding the car’s abilities.With the Exige already regarded as the standard for purity of purpose, Lotus’ engineers have built upon this benchmark, ensuring that the application of more power is complemented by a class-leading handling balance, characterised by precision and tactility.At the heart of the car lies Lotus’ most formidable engine, a 3.5-litre supercharged and charge cooled V6 producing 430 hp and 440 Nm.Unapologetically aggressive, the Exige Cup 430’s 220 kg of downforce is developed through the careful management of airflow under and over the car. Vital in keeping the Cup at the top of timing sheets, it’s designed to make the most of 440 Nm (325 lbft) of torque delivered from 4,000 rpm, and delivering the lowest of lap times not matter the track. This not only includes the new front clam panel, incorporating a new design of splitter and carbon fibre air blades, but also the high mounted rear wing.  The new body introductions combine form and function, with the new hybrid carbon composite panels not only saving weight, but also delivering the car’s distinctive new styling and aerodynamic set up.Balancing downforce over the entire car was a priority with, when compared to the Exige Cup 380, a greater percentage of downforce allocated to the front to ensure accurate high-speed turn in (36% increased to 45%). The new front splitter with trailing lip helps separate and speed airflow under the car and the inclusion of new air curtain elements into the front clam panel efficiently moves air though to the front wheel cavities to help reduce turbulence and drag generated by the front wheels. The front louvers reduce the pressure within the front wheel arches, increasing downforce. The cut-out sections behind the rear wheels, also reduce wheel arch pressure, whilst the new lightweight aluminium diffuser is 1 kg lighter. Crowning all of this is the carbon fibre straight rear wing, raised higher to further boost downforce, clearly signaling the car’s aggressive intent and pursuit of aerodynamic excellence.
As you would expect, the intense use of ultra-lightweight carbon fibre only adds to the overall performance, as well as reinforcing the Exige Cup 430’s physical presence. The hand-made composite components include front splitter, front access panel, roof, diffuser surround, large aperture air-intake side pods, one-piece tailgate and the race derived rear wing.Scratch the surface of the Cup’s capabilities, and you’ll find its motorsport-derived credentials. In addition to revised steering arm geometry, to increase bump steer, the car’s handling characteristics can be altered via the introduction of new Nitron three-way adjustable dampers (adjustable for rebound and low and high-speed compression, giving the ability to fine tune the damping) and Eibach adjustable front and rear anti-roll bars, both as standard.

The substantial Michelin Pilot Sport Cup 2 tyres (215/45 ZR17 front and 285/30 ZR18 rear) are fitted to ultra-lightweight forged alloy wheels, available in red, black or silver as standard.The faster the car, the better the brakes need to be, and the Exige Cup 430 uses some of the largest calipers and rotors of any Lotus road car. With forged, four-piston AP Racing brake calipers and new performance two-piece, J-hook brake discs (with higher thermal capacity) front and back, the system is designed to give improved bite and debris clearance and reduce distortion and vibration and to deliver consistent pedal feel and stopping power lap after lap.The Cup 430 also comes with a tremendously strong, yet light, T45 steel roll over bar, new seatbelt anchorage frame (saving 1.2 kg), a Lithium-Ion battery and front towing eye as standard, as well as a host of options including, a dealer fit FIA compliant roll cage, electrical cut-off and fire extinguisher controls, airbag deletion and a non-airbag steering wheel.Key to the Cup’s potency is the Exige’s newly-developed powertrain. Based on the benchmark engine from the recently launched Evora GT430, it features an Edelbrock supercharger and water to air charge cooler to generate more power through cooling the higher pressure charged intake air. Specifically developed for the Exige, the engine’s calibration allows for a redline of 7,000rpm, helped in part by a new intake system and larger throttle body. In order to handle the extra power, a new oil cooler configuration and uprated clutch are required.Available as standard with a close-ratio, six-speed manual transmission, the Exige range features Lotus’ acclaimed open-gate manual gearbox design. Precisely aligned for fast and seamless shifts, it has recently established itself as a favourite of Lotus customers. To transfer the increased power and torque from the engine to the gearbox, a new 240 mm diameter clutch has been fitted (up 12 mm compared to the Exige Cup 380) which increases the clutch surface area by 11%.
Engine note and tone also play big parts in the Cup’s repertoire. With the new induction and supercharger configuration, and a high-flow titanium exhaust system as standard, the Cup 430 sounds like no other Exige at speed. In addition, the titanium exhaust removes 10 kg from beyond the rear axle.The Lotus Exige Cup 430 includes a variable traction control function, linked directly to the ECU. The six-position rotary switch is located on the steering column, and only active with ESP switched to off, with five pre-set traction levels (1%, 3%, 6%, 9%, 12% slip) as well as “off”, displayed via the instrument cluster.The composite concept continues into the Cup’s cabin with visible-weave, handmade sections including a new lightweight carbon fibre binnacle surround, Lotus’ bespoke carbon race seats, with new lightweight seat runners, and carbon door sills. Colour keyed inserts for the revised lightweight sports seats, transmission console, HVAC surround and window switches are also standard, along with a centre console, door cards and dashboard trimmed in Alcantara®, with leather or tartan as a no cost option, along with contrast stitching and an Alcantara® steering wheel. In total, the lightweight interior of the Exige Cup 430 is 2.5 kg lighter than on the Cup 380.All the lightweight standard items help reduce the total mass by 29 kg which more than offsets the increase in weight from the chargecooler and cooling system (+15 kg), new higher rated clutch (+0.8 kg) and wider brake discs (+1.2 kg) resulting in an unladen weight of 1,093 kg and 1,059 kg dry.  By selecting the airbag deletion option, the customer can take the lightest possible dry weight of the Exige Cup 430 to 1,056 kg.
For owners wanting to brand the new Exige their own, the Cup 430 can be personalised through Lotus’ Exclusive programme. Combining traditional British craftsmanship with modern design, the service inspires customers to spend time tailoring the character of their Lotus with a comprehensive array of options. Since its introduction this has proved increasingly popular, with over 25% of all new cars undergoing some form of personalisation.Launching the new Lotus, Jean-Marc Gales said, “The Exige continues to push the boundaries of what is possible in terms of performance, agility, aerodynamics and rapid covering of ground from A to B in a production road car. There isn’t another car on sale that can match the new Exige Cup 430; it will go down as a ground-breaking car in the history of Lotus.”
To find out more about Lotus Exige Cup 430: www.lotuscars.com/about-exige.
The Exige Cup 430 is available as a series production car and can be ordered now, priced £99,800 including VAT (UK) and €127,500 (Germany) and €128,600 (France).
INFORMATION
Exige Cup 430 – Technical Specification



PERFORMANCE Exige Cup 430
Max power 430 hp at 7,000 rpm (436 PS)
Max torque 325 lbft from 4,000 rpm to 6,800 rpm (440 Nm)
0-60 mph 3.2 seconds
0-100 km/h 3.3 seconds
Max speed 180 mph (290 km/h)
CO2 emissions 242 g/km (TBC)
Unladen mass 1,093 kg
Dry mass 1,059 kg
Lightest possible dry mass 1,056 kg
Power-to-weight ratio (dry mass) 407 hp per tonne
Aerodynamic downforce at maximum speed 220 kg

Front: 100 kg; Rear: 120 kg

Hethel lap time 1:24.8 seconds





Engine AND Transmission
3.5 litre V6, 24-valve, water cooled, all aluminium engine, with Edelbrock supercharger and charger cooler
6-speed manual transmission, with gearbox cooler, coupled to Lotus’ precision shift aluminium mechanism
Lightweight, single-mass, low inertia fly wheel and 240 mm diameter clutch
Baffled sump
Titanium exhaust system
CHASSIS AND BODY
Anodised, lightweight aluminium, extruded, epoxy bonded and riveted high-stiffness chassis
Servo assisted, race-derived, lightweight two-piece J-hook ventilated brake discs (front 332 mm x 32 mm, rear 332 mm x 26 mm) and AP Racing four piston calipers
Unequal length, lightweight steel double wishbone suspension (front)

Unequal length, lightweight forged aluminium, double wishbone suspension (rear)

Adjustable Eibach® tubular front and rear anti-roll bars

Lotus-tuned, Nitron three-way dampers, adjustable for rebound (24 click adjustment settings) and low speed compression (24 click adjustment settings) and high speed compression (16 click adjustment settings) and Nitron springs
Driver selectable ESP modes – Drive/Sport/Race/Off
6 position variable traction control, with five pre-set traction levels (1%, 3%, 6%, 9%, 12% slip) and “off” displayed via the instrument cluster
Tyre pressure monitoring system
Lightweight lithium-ion battery



EXTERIOR SPECIFICATION
Lightweight front clam including wheel arch louvers, drag-reducing air curtain and carbon fibre splitter with rubber lower lip
Lightweight rear clam including venting for wheel arches
Lightweight aluminium rear diffuser
Carbon fibre front access panel
Carbon fibre roof panel
Carbon fibre rear diffuser surround
Lightweight carbon fibre tailgate with full width straight profiled rear wing
Polycarbonate backlight
Brake calipers – red painted with black AP Racing logo
Lotus designed, ultra-lightweight, fully machined, forged aluminium wheels (17″ front and 18″ rear 10 spoke alloy wheels) in silver, black or red.
Michelin Pilot Sport Cup 2 tyres (front 215/45 R17, rear 285/30 R18)
Mud flaps
Rear wing uprights linked to wheel colour choice
LED daytime running lights
Rear parking sensors
ECE R116 approved immobiliser and remote activated alarm system



INTERIOR SPECIFICATION
2 seat configuration
Carbon fibre sports seats, trimmed in black Alcantara® and new design perforated leather with contrast twin stitching
Centre console and door panels trimmed in a combination of black Alcantara® and perforated leather, with contrast twin stitching
Carbon fibre binnacle top
Interior Colour Pack including HVAC console, gearshift top trim, bucket seat eyelets, window lift switch bezels
Lotus developed steering wheel trimmed in black Alcantara®
Carbon fibre door sill covers



OPTIONS: INTERIOR AND TRIM UK RETAIL PRICE DE RETAIL PRICE
Full Carpets £350 € 490
Floor Mats £100 € 140



OPTIONS: EXTERIOR AND BODY UK RETAIL PRICE DE RETAIL PRICE
Lotus designed, ultra-lightweight, fully machined, forged aluminium wheels in black (linked to wing uprights) NCO NCO
Lotus designed, ultra-lightweight, fully machined, forged aluminium wheels in silver (linked to wing uprights) NCO NCO
Lotus designed, ultra-lightweight, fully machined, forged aluminium wheels in red (linked to wing uprights) NCO NCO



OPTIONS: COMFORT AND COMMUNICATION UK RETAIL PRICE DE RETAIL PRICE
Air Conditioning £1,250 € 1,650
Stereo plus two front speakers £400 € 560
Sound Insulation £500 € 700
Cruise Control £110 € 150





OPTIONS: LIGHTWEIGHT AND PERFORMANCE UK RETAIL PRICE DE RETAIL PRICE
Airbag deletion (including Alcantara non airbag steering wheel) and A-frame for fitment of 4 point harness (available via Lotus Aftersales post registration) £2,600 €3,500
Fire Extinguisher £1,300 € 1,750
Battery Isolator £1,300 € 1,750
Standard battery NCO NCO



PAINT OPTIONS UK RETAIL PRICE DE RETAIL PRICE
Signature Paint £900 € 1,250
Metallic Paint £900 € 1,250



LOTUS EXCLUSIVE OPTIONS UK RETAIL PRICE DE RETAIL PRICE
Exclusive Paint: Alternative metallic colours £2,150 € 2,910
Exclusive Paint: Alternative pearlescent colours £3,000 € 4,200
Exclusive Paint: Custom Colour choice POA POA
Exclusive Leather: Alternative colour £2,250 € 3,000
Exclusive Stitch Alternative colour £300 € 400
The above options represent just a sample of what is available through Lotus Exclusive. Further information on the Lotus Exclusive programme, including a comprehensive list of the available customisation options can be found at:     www.lotuscars.com/exclusive



MARKET RETAIL PRICE
UK £99,800 (incl. VAT at 20%)
Germany €127,500 (incl. VAT at 19%)
France €128,600 (incl. VAT at 20%)
Italy €133,160 (incl. VAT at 22% and transport)



ENDS
